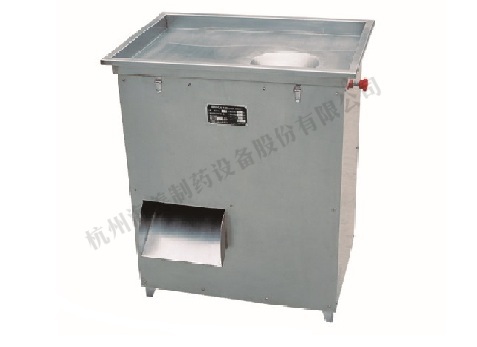

QX(自適應)旋料式切片機

 提示:點擊圖片可以放大

QX型旋料式切片機(自適應)主要用途:

    用于果實、種子和部分根莖類藥材及其它農副產品的切片加工。

               250型旋轉式切片機

      QX型旋料式切片機(自適應)主要特點:

        連續作業,單機產量高,自動適應進料量,切制力與物料質量成正比(自適用);易清洗、易操作、不污染物料,符合GMP要求。其中QXWT-250和QXWT-350為變頻調速。


          QX type rotary slicer (adaptive) products:
          This product is used for slice processing of fruits, seeds and some rhizome medicines and other agricultural and sideline products.

          The main features of QX type rotary slicer (adaptive) are:
          Continuous operation, single machine production high, automatically adapt to the feed volume, cutting force and material quality is proportional to (self applicable); Yi Qingxi, easy operation, non pollution materials, meet the requirements of GMP. QXWT-250 and QXWT-350 are variable frequency speed control.

          QX型旋料式切片機技術參考  Technical parameter


          型號切刀頻率(times/min)進料口尺寸切片厚度參考產量(Kg/h)功率/電壓(KW/V)重量(KG)外型尺寸(M)主要材料
          QXL-1001920≤1000.5-5150-6001.5/3802200.7×0.6×0.9不銹鋼
          QXL-1502880≤1000.5-6200-9002.2/3803000.8×0.6×1.0
          QXL-2502000-4000≤2500.5-6250-14003.0/3803501.2×1.0×1.0不銹鋼
          QXL-3502000-4000≤3500.5-6300-20004.0/3804001.6×1.3×1.1不銹鋼



                     150型旋轉式切片機
