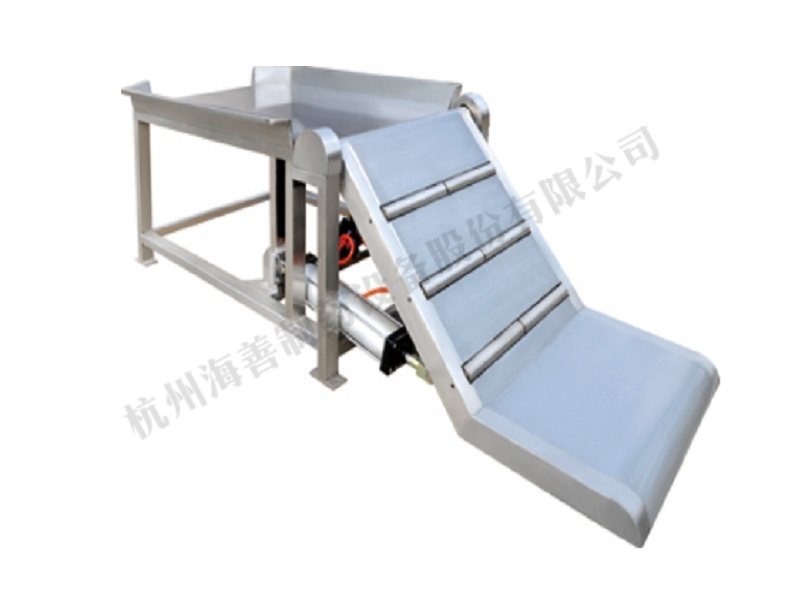

自動上料拆包平臺

 提示:點擊圖片可以放大

自動上料拆包主要用途:

用于聯動線生產高度落差之間的投料運送。


自動上料拆包平臺主要特點:

產品結構簡單、維修方便、占地面積小、運行可靠。


自動上料拆包平臺工作原理:

翻轉平臺通過氣動或油缸提升裝置將物料從地面翻轉提升至固定平臺的位置,再人工拉至固定平臺上拆包。改變了原來人工抬料的上料模式,大大減輕工人的勞動強度。

The main use of the automatic feeding and dismantling platform:

It is used for the delivery of high drop between linkage lines.

The main features of the automatic feeding and dismantling platform are:

The product has simple structure, convenient maintenance, small footprint and reliable operation.

The working principle of automatic feeding and dismantling platform:

The platform is turned over from the ground to the fixed platform by the pneumatic or cylinder lifting device, and then manually pulled to the fixed platform to remove the package. The manual feeding mode has been changed, and the labor intensity of workers has been greatly reduced.



自動上料拆包平臺技術參數:

型號

 提升行程

(mm)

 額定載荷

(Kg)

 重量

(kg)

 外型尺寸

(m)

 主要材料
 GB-1000-1100-900150120 2.6×1.05×0.95 不銹鋼
 GB-1000-2100-900200170 2.78×1.15×0.95 不銹鋼
